Secure Bank Simulation Challenge

Description

This challenge involves a simulation of a secure banking system using Arduino, hosted on Wokwi. Participants must interact with a keypad and LED system to unlock the flag. The flag is obfuscated through Base64 encoding and stored in reverse, adding layers of complexity.

Objectives

• Decode the Base64-encoded PIN and flag.
• Reverse the flag to reconstruct the original string.
• Optionally, bypass the Arduino logic to retrieve the flag directly.

Solution Workflow

Step 1: Decode Base64 Strings

The system stores sensitive information, including the PIN and flag, in Base64 encoding. Using a Python script, these can be decoded into a human-readable format.

Step 2: Reverse the Decoded Flag

Once decoded, the flag is stored in reverse order. Reversing it again retrieves the original flag.

Step 3: Analyze and Modify Logic (Alternative)

By bypassing or altering Arduino logic, you can force the system to reveal the flag without meeting the original conditions.

Python Script for Decoding

Here’s a Python script to decode the Base64-encoded PIN and flag, as well as reverse the flag:

import base64

def decode_and_reverse(base64_list):
    decoded_list = []
    for base64_string in base64_list:
        decoded = base64.b64decode(base64_string).decode('utf-8')
        reversed_decoded = decoded[::-1]
        decoded_list.append(reversed_decoded)
    return decoded_list

# Example Base64 values
pin_b64 = ["UElO"]  # Replace with the Base64 string for the PIN
target_flag_b64 = ["MTk2Mg=="]  # Replace with the Base64 string for the flag

# Decode the PIN
decoded_pin = [base64.b64decode(pin).decode('utf-8') for pin in pin_b64]

# Decode and reverse the flag
decoded_flag = decode_and_reverse(target_flag_b64)

print(f"Decoded PIN Array: {decoded_pin}")
print(f"Decoded and Reversed Flag Array: {decoded_flag}")

Explanation of the Script:

1. Base64 Decoding: The decode_and_reverse function decodes the Base64-encoded strings and then reverses the decoded string to retrieve the original flag.
2. PIN Decoding: The PIN is decoded from Base64 directly without reversal.
3. Flag Decoding: The flag is decoded and reversed to get the original value.

Arduino Logic Overview

Input Validation:

• A numeric PIN is entered using a keypad.
• Correct PIN input initiates LED validation.

LED States:

• Two LEDs must be in specific states to proceed.

Flag Retrieval:

• If conditions are met, pressing # reveals the encoded and reversed flag.

Obfuscation:

• Both the PIN and flag are stored in Base64 and reversed for added complexity.

Alternate Solution

To bypass the challenge conditions:

1. Modify the Arduino code to ignore PIN and LED state validations.
2. Force the system to display the flag upon any interaction.

Solve:

We can enter the encoded PIN ‘1962’ and turn on the first and last LEDs to show the flag.

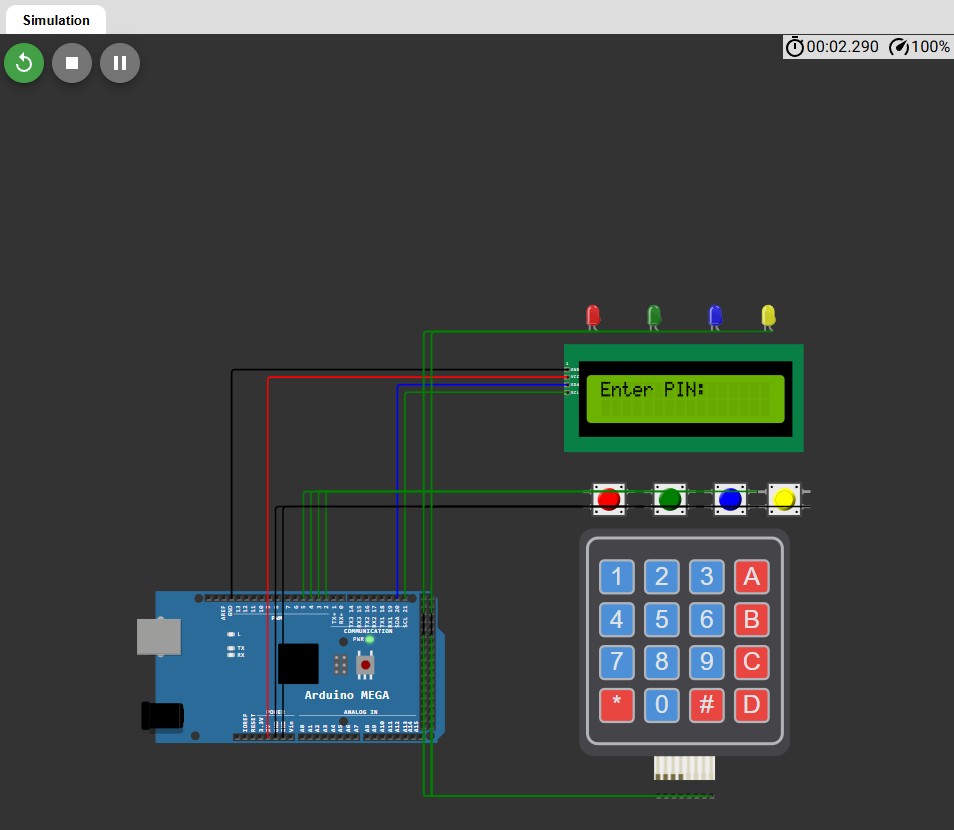

Full Architecture

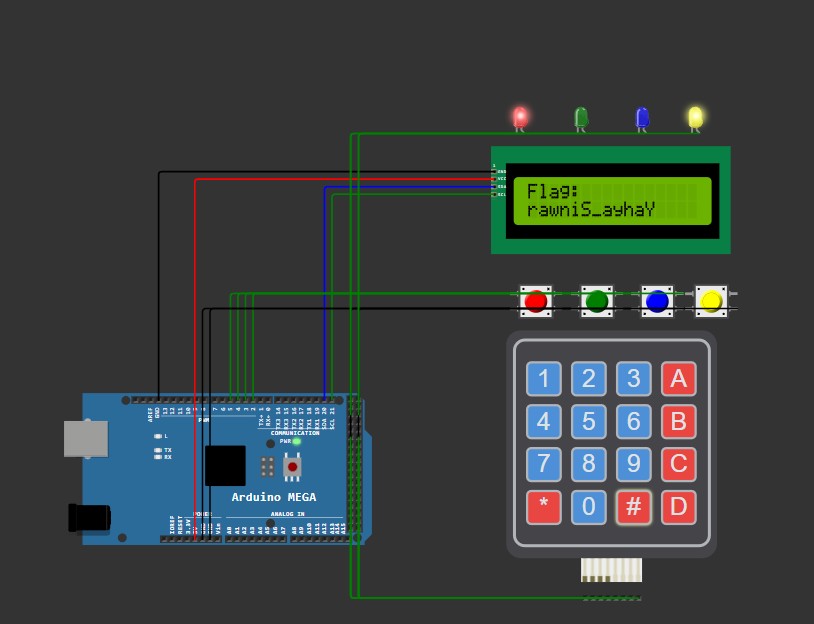

Solve Output

Author

HAMZAOUI

This challenge highlights cryptographic concepts like Base64 encoding and basic embedded system security. It encourages participants to explore both reverse engineering and logical bypass techniques.
